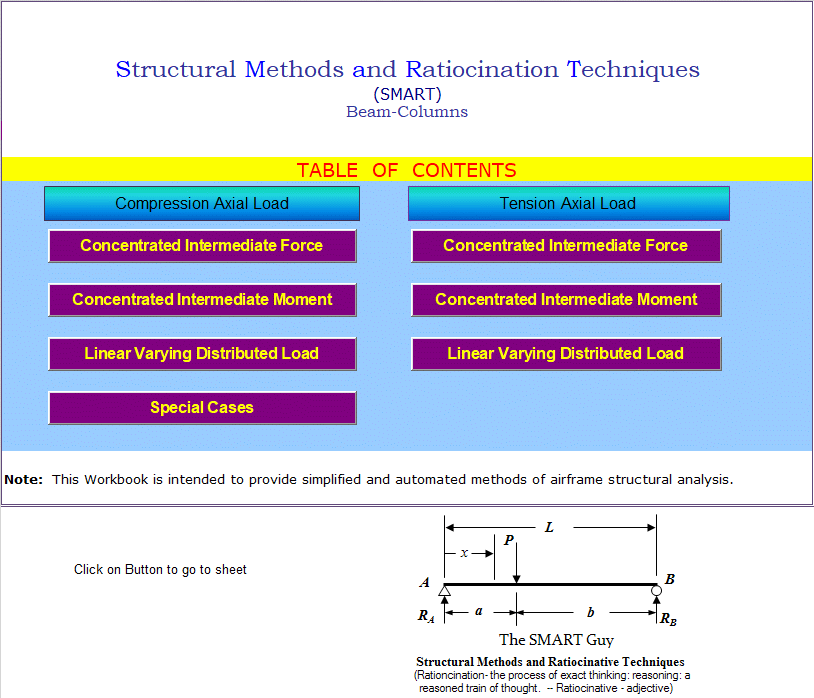

This Excel spreadsheet is for analysis of straight beam-columns. It has tabs for the analysis of compression and tension cases for a concentrated intermediate load, a concentrated intermediate moment, and a linear varying distributed load that goes from any point "a" to any point "b" (as opposed to formulas in Roark's "Formulas for Stress and Strain" which goes from a point "a" to the end). Each of the cases contain end constraint cases for: 1. Both ends simply supported; 2. One end simply supported the other fixed; 3. Both ends fixed; and, 4. Cantilever. In addition, there is a tab for compression cases that are those that are typical. Two "Calc" tabs show the detailed analysis steps used for the linear varying distributed loading that is used.
