GoBeam - continuous beam analysis

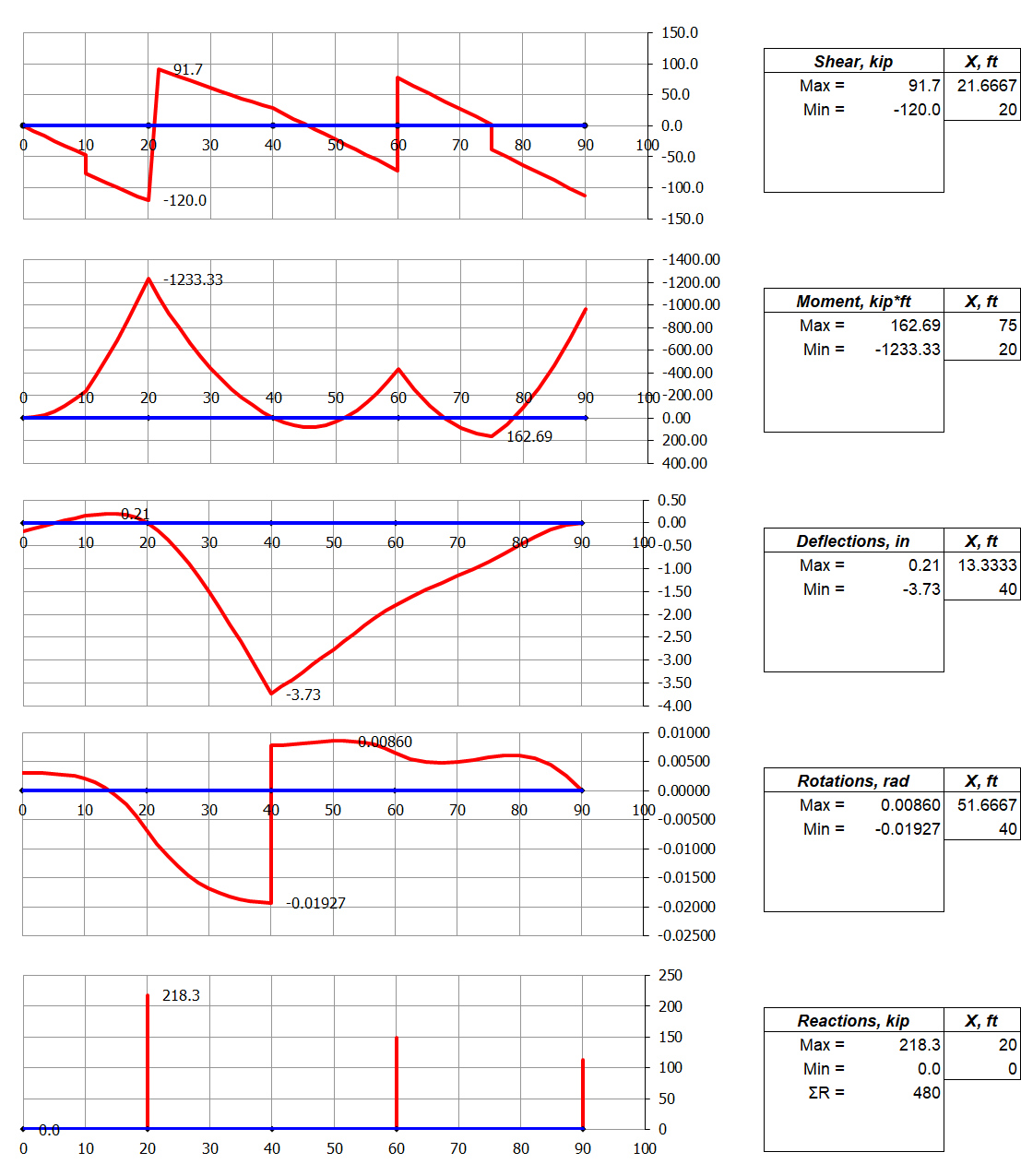

The main asset of GoBeam is productivity. The simple and clear interface layout offers minimum time to enter beam parameters and to get complete analysis results, including graphs and tables. Despite of visual simplicity GoBeam offers unique features greatly appreciated by engineers.

Features:

Modeling

Up to 100 spans

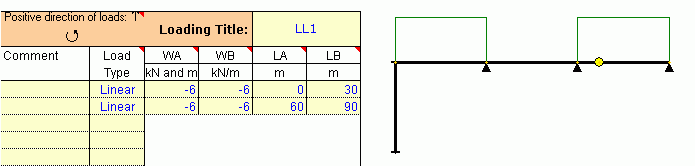

Concentrated and linear loads
Support displacement load
Free or fixed ends of the beam
Column supports (above or below)
Elastic and compression only supports
In-span hinges (moment release)
Variable beam stiffness within a span
Sway frame option (for beams with columns)

Functionality

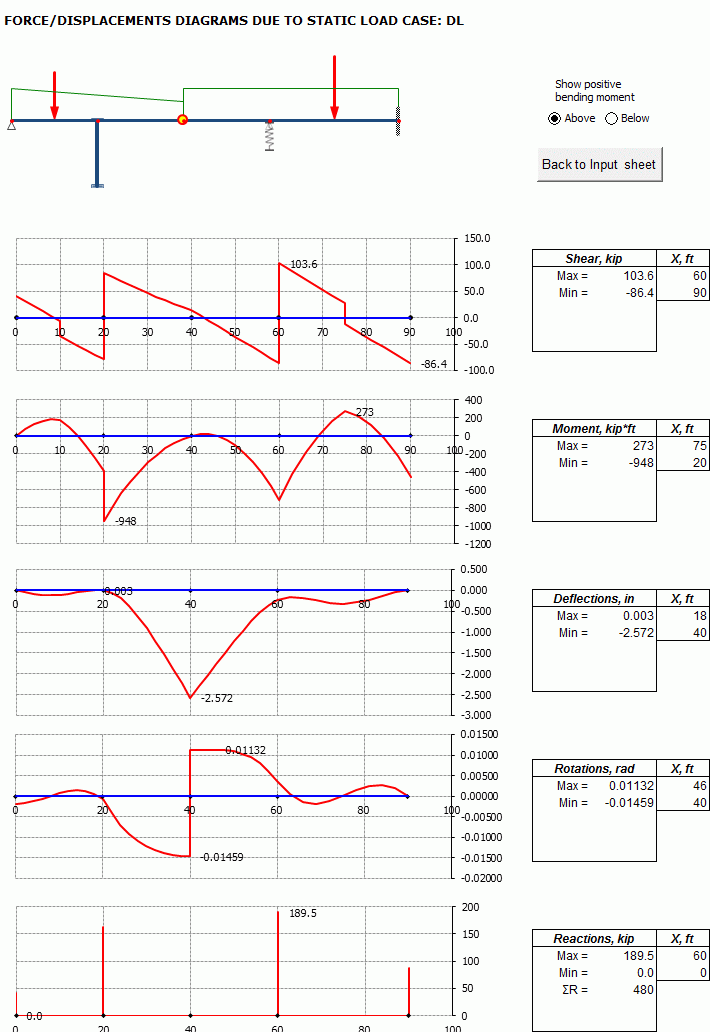

Static analysis
Beam on elastic foundation non-linear analysis
Support settlement analysis

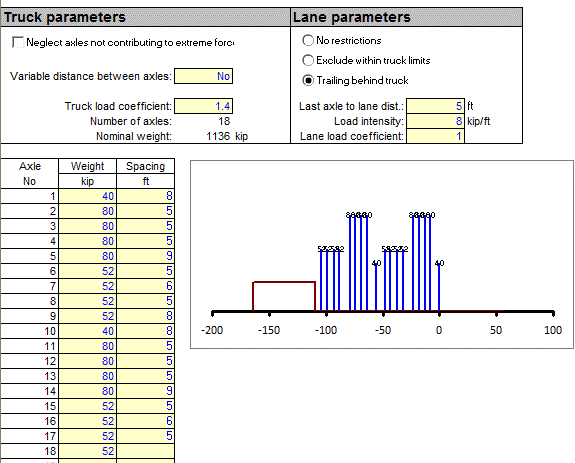

Moving load analysis for user-defined lane+truck type of loads. Standards loads such as HL93, CL-625, M 1600, Cooper E90 and others are included in truck database.
Influence lines of forces, support reactions and deflections
Plastic analysis: progressive collapse and moment redistribution

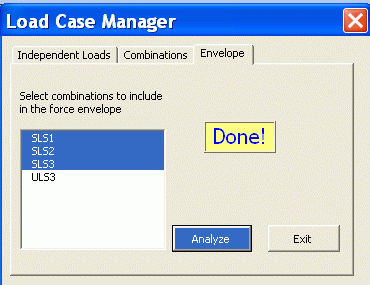

Multiple load cases

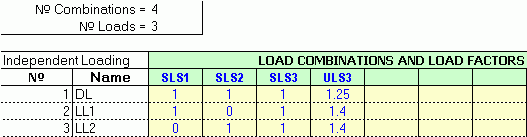

Load combinations

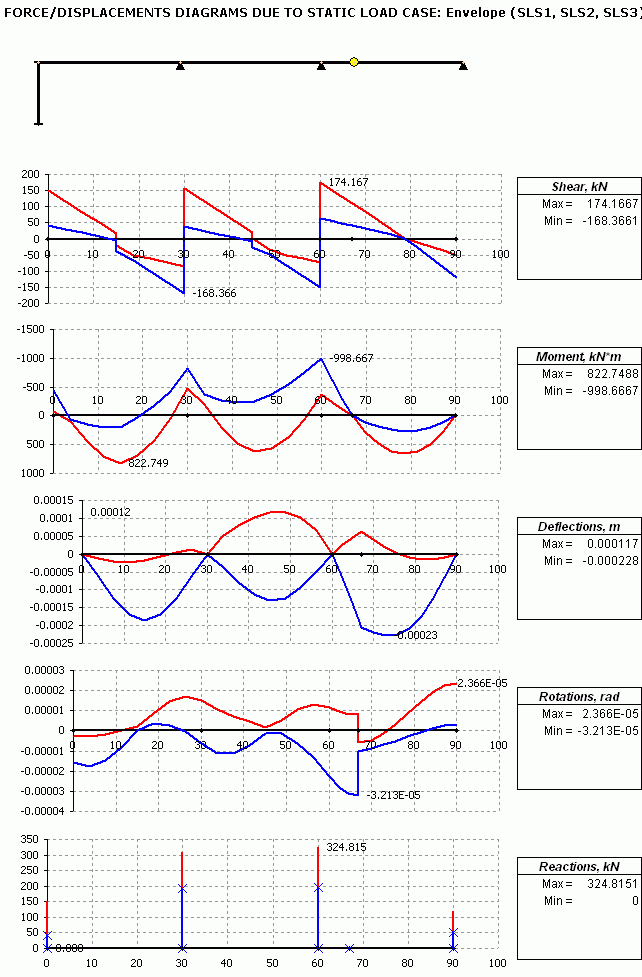

Force envelopes

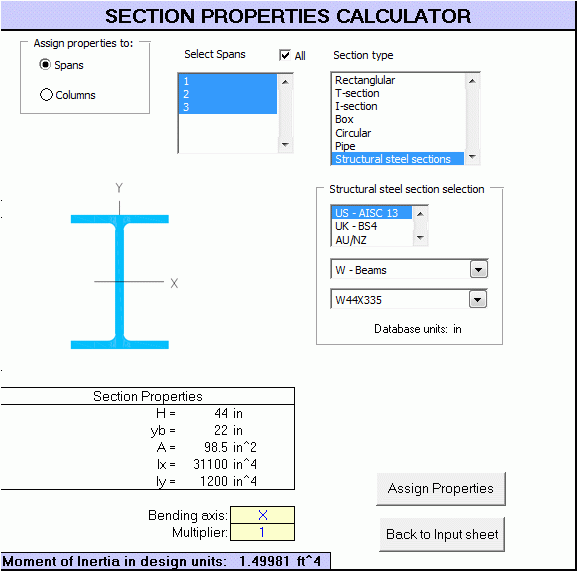

Section properties calculator
SI and US customary units
Customized printing

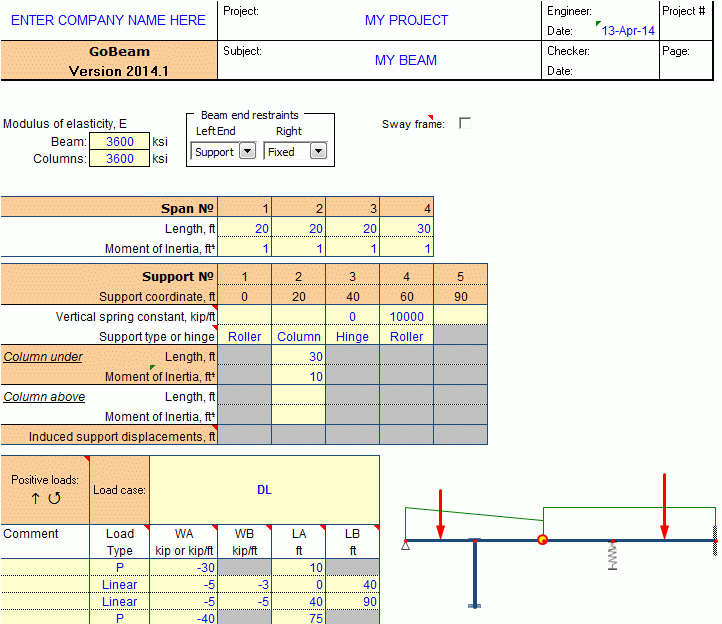

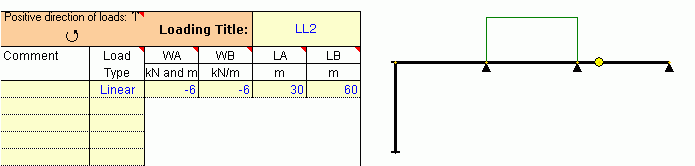

Input page
