This web site contains a collection of engineering spreadsheets for structural analysis and design of concrete and steel structures. The programs have been developed by practicing professional engineers with emphasis on productivity, dependability, and clarity. To insure quality of the spreadsheets we have comprehensively compared analysis results to leading commercial software products and found them to be accurate. |
| Application | Description | Links | Status |
|---|---|---|---|
| GoBeam | The easiest continuous beam analysis program available. Features concentrated and linear loads, support settlements, beam on elastic foundation, and influence lines. | Download More Info |
Shareware |

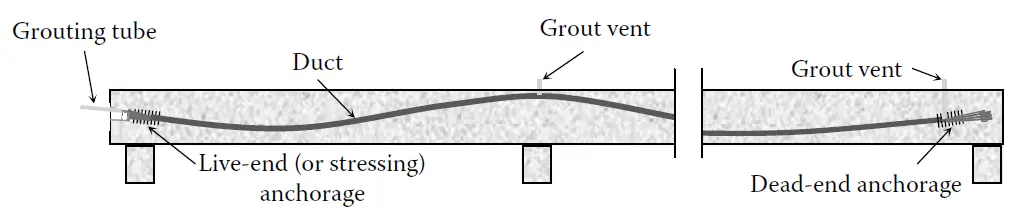

| PSLoss | Calculates elongations and prestress losses due to friction and anchor set of three-dimensional post-tensioned tendon. | DownLoad More Info |
Shareware |
| ShortCol Update! | Calculates bending moment/axial force interaction diagram for rectangular or circular reinforced concrete column with typical or irregular rebar layout. Confirms ACI 318 and AASHTO design codes. Now includes biaxial bending interaction! | Download More Info |
Shareware |
| ShortColEC2 Update! | Eurocode 2 edition of popular ShortCol spreadsheet for reinforced concrtete column capacity calculations. Now includes biaxial bending interaction! | Download More Info |
Shareware |
| Column Shear Capacity | Calculates shear capacity and confinement reinforcement of circular and oblong shape reinforced concrete columns in compliance with seismic provisions of AASHTO 17th edition and and AASHTO LRFD. | Download |
Freeware |
| LRFDShear | Calculates reinforced/prestressed concrete member shear and torsion capacity according to 2006 AASHTO LRFD Bridge Code. | Download More Info |
Shareware |
| BoltGroup | Implements AISC LRFD method to calculate shear capacity of eccentrically loaded bolt group. | Download More Info |
Shareware |
| WeldGroup | Implements AISC LRFD method to calculate capacity of weld group under combined action of eccentrically applied in-plane and normal forces. | Download More Info |
Shareware |
| SectProp | Update! Calculates structural properties of general cross-section. Also calculates torsional properties of thin-walled section including shear center and warping moment of inertia. | Download More Info |
Shareware |
| PostProGTS | Post-processor of GT STRUDL analysis results. Automatically retrieves frame and FE results into MS Access database controlled from the spreadsheet. | Download
More info |
Shareware |
| Bridge2d | Builds two-dimensional bridge models and performs static and moving load analyzes. Uses GT STRUDL as a structural analysis engine. | Download More Info |
Shareware |
| SmartComb | Creates load combinations and finds maximum/minimum force envelopes for structural members. | Download More Info |
Shareware |
| PSGSimple | This spreadsheet performs preliminary analysis of a precast prestressed bridge girder at the prestress transfer and service stages. It sizes the girder and determines the amount of prestressing steel (AASHTO LRFD design code). | Download More Info |
Shareware |
| Gallery Creator | This one has nothing to do with structures, converts list of image files into online photo gallery and slide show (IE 5.0). | Download |
Freeware |
| XLSudoku | Excel based popular Sudoku puzzle. It creates puzzles, provides helpful notations and hints when you stuck. Lots of fun for the trap-like minds, enjoy. | Download |
Freeware |
