This web site contains a collection of engineering spreadsheets for structural analysis and design of concrete and steel structures. The programs have been developed by practicing professional engineers with emphasis on productivity, dependability, and clarity. To insure quality of the spreadsheets we have comprehensively compared analysis results to leading commercial software products and found them to be accurate.


Application Description Links Status

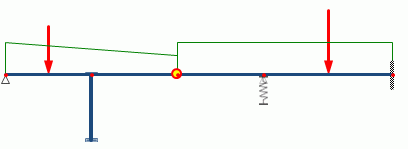

GoBeam The easiest and most straight forward continuous beam analysis program available. Features static and moving loads, support settlements, non-linear analysys of beam on elastic foundation and influence lines analysis. It allows elastic and column support conditions, hinges and variable beam stiffness.
A few important changes have been made: Spreadsheet is adjusted to run fast on Excel 2013, more flexible printing options provided, beam diagram displays elastic supports, generator of beam on elastic foundation is added.
Download
More Info
Shareware

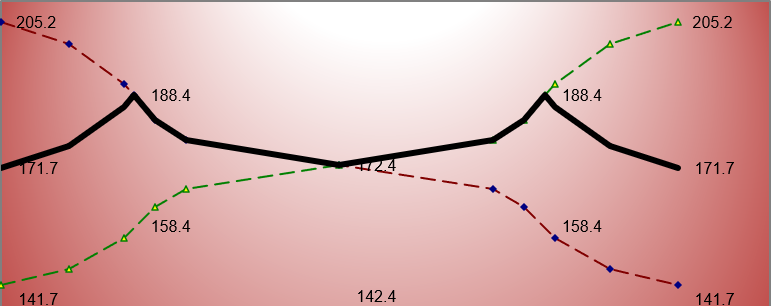

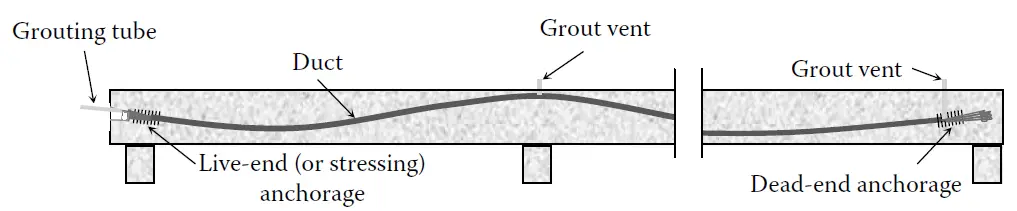

PSLoss Calculates elongations and prestress losses due to friction and anchor set of three-dimensional post-tensioned tendon. DownLoad
More Info
Shareware

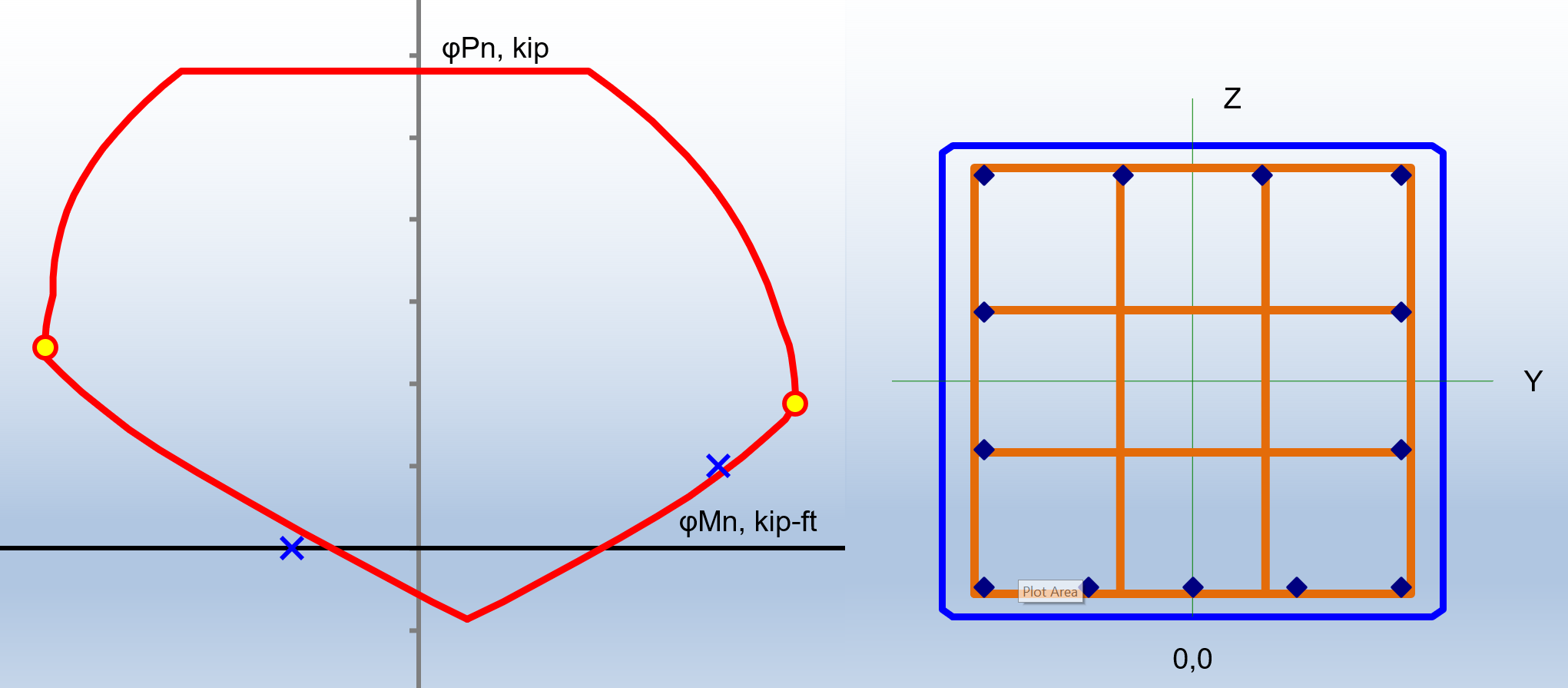

ShortCol Calculates bending moment/axial force interaction diagram for rectangular, T-shaped or circular reinforced concrete column with typical or irregular rebar layout. Also it calculates crack width under working stresses. Confirms ACI 318, AASHTO and AS3600 design codes. Download
More Info
Shareware

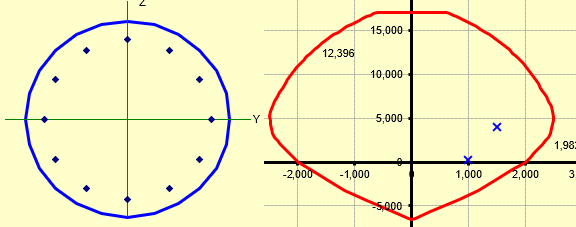

ShortColEC2 Eurocode 2 edition of popular ShortCol spreadsheet for reinforced concrtete column capacity calculations.
Updates: Crack width calculations, new graphics and a new wizard interface.
Download
More Info
Shareware
Column Shear Capacity Calculates shear capacity and confinement reinforcement of circular and oblong shape reinforced concrete columns in compliance with seismic provisions of AASHTO 17th edition and and AASHTO LRFD. Download
Freeware

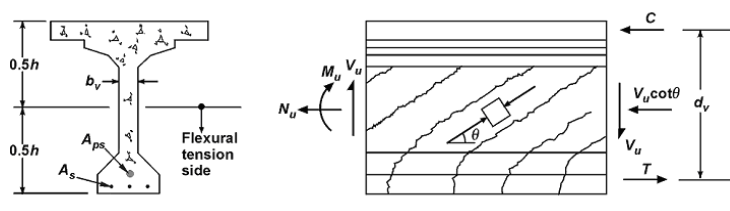

LRFDShear Calculates reinforced/prestressed concrete member shear and torsion capacity according to 2006 AASHTO LRFD Bridge Code. Download
More Info
Shareware

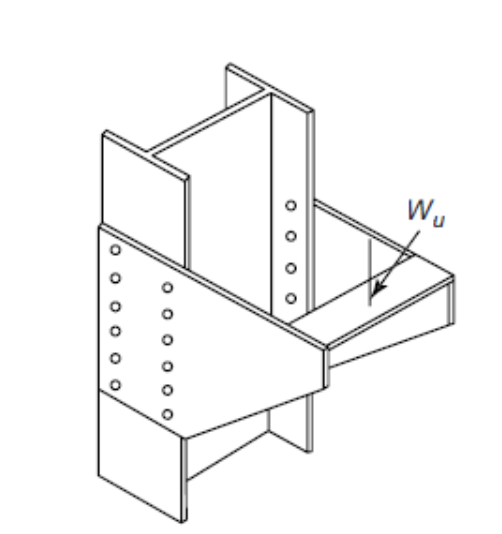

BoltGroup Implements AISC LRFD method to calculate shear capacity of eccentrically loaded bolt group. Finally available for Excel 2007 Download
More Info
Shareware

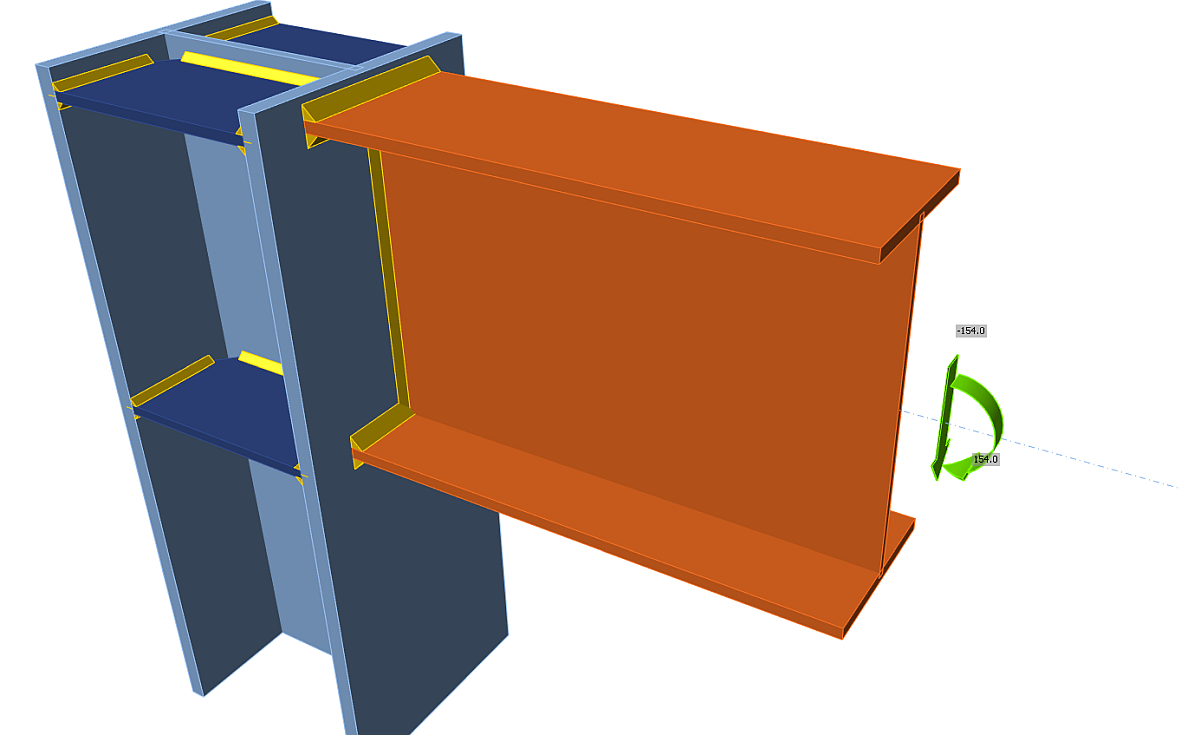

WeldGroup Implements AISC LRFD method to calculate capacity of weld group under combined action of eccentrically applied in-plane and normal forces.Finally available for Excel 2007 Download
More Info
Shareware

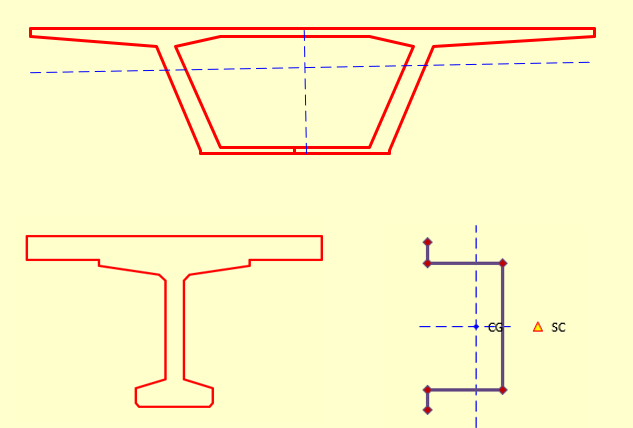

SectProp Calculates structural properties of general cross-section. Also calculates torsional properties of thin-walled section including shear center and warping moment of inertia. Download
More Info
Shareware
PostProGTS Post-processor of GT STRUDL  analysis results. Automatically retrieves frame and FE results into MS Access database controlled from the spreadsheet. Download
More info
Shareware
Bridge2d Builds two-dimensional bridge models and performs static and moving load analyzes. Uses GT STRUDL  as a structural analysis engine. Download
More Info
Shareware

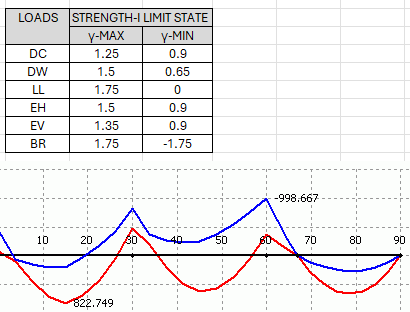

SmartComb Creates load combinations and finds maximum/minimum force envelopes for structural members. Download
More Info
Shareware
PSGSimple This spreadsheet performs preliminary analysis of a precast prestressed bridge girder at the prestress transfer and service stages. It sizes the girder and determines the amount of prestressing steel (AASHTO LRFD design code). Download
More Info
Shareware
Gallery Creator This one has nothing to do with structures, converts list of image files into online photo gallery and slide show (IE 5.0). Download
Freeware

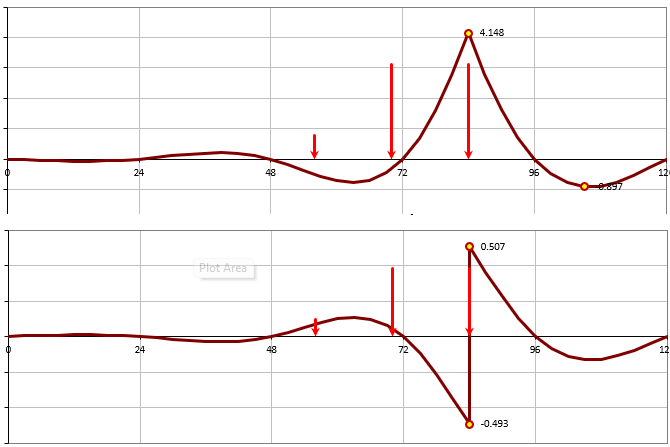

Influence Lines Computes influence lines of forces in continuous beams. Download
Freeware

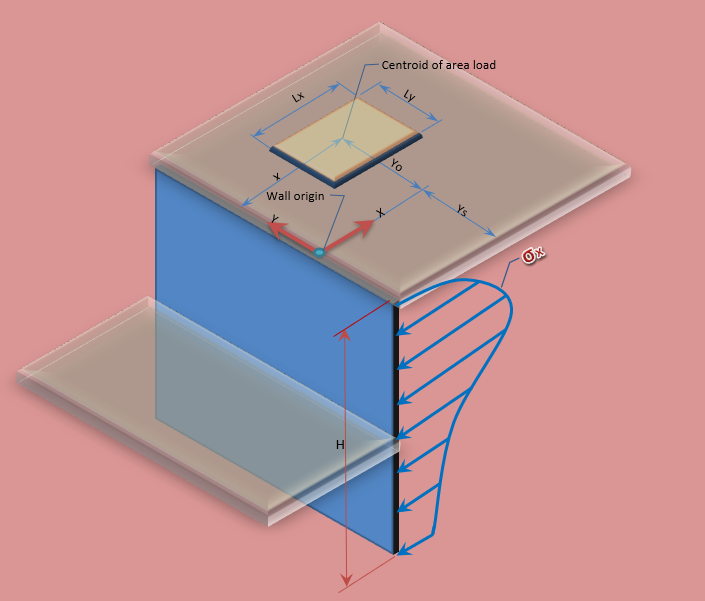

Surcharge Earth Pressure This spreadsheet computes lateral pressure against retaining wall due to multiple surcharge area loads. Download
Freeware

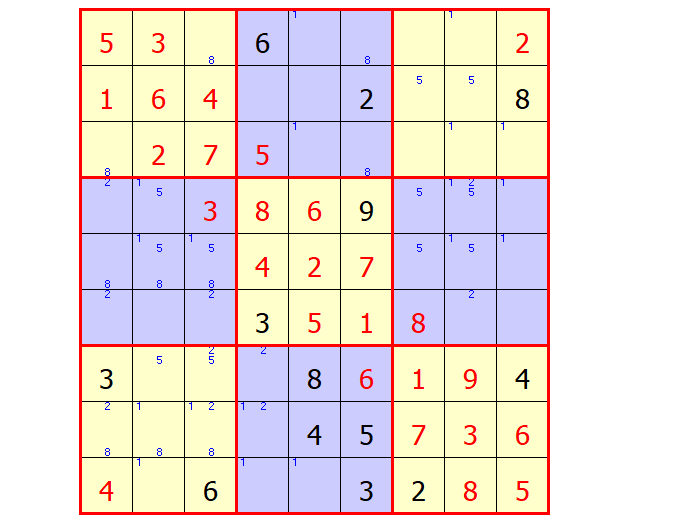

XLSudoku Excel based popular Sudoku puzzle. It creates puzzles, provides helpful notations and hints when you stuck. Lots of fun for the trap-like minds, enjoy. Download
Freeware

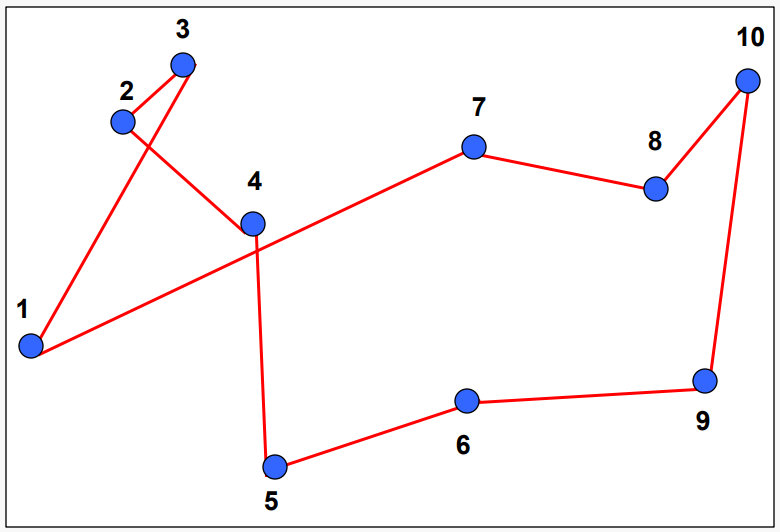

Travelling Salesman This spreadsheet solves the famous travelling salesman problem of finding the shortest cyclical itinerary for a travelling salesman. Download
Freeware
New!
Monty Hall Problem
This famous mathematical problem gets its name from the TV game show, “Let’s Make A Deal,” hosted by Monty Hall. Suppose you’re on a game show, and you’re given a choice of three doors: Behind one door is a car; behind the others, goats. You pick a door, say number 1, and the host, who knows what’s behind the doors, opens another door, say number. 3, which has a goat. He says to you, ‘Do you want to pick door number 2?’ Is it to your advantage to switch your choice of doors?
The Monty Hall problem has attracted academic interest because the result is surprising and the problem is simple to formulate. Many mathematicians, PhDs and even Nobel Prize winners got it wrong! Click here to read more.
Download
Freeware
